Product Description
ESD Polyimide Adhesive Tape is made from ESD polyimide film as the bottom material and is coated with pressure-sensitive silicone adhesive. High temperature, solvent resistant, stable and reliable, easy to peel off no glue residue, Suitable for H-class insulation, PCB 3d printing, and transformer insulation.

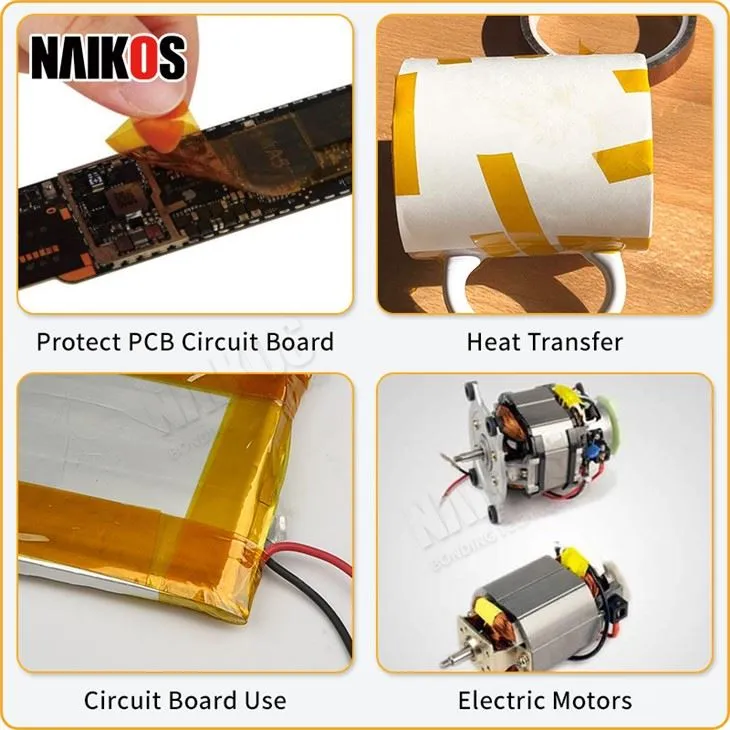

Application
Etching
Fiber Optics Cable
High-temperature powder coating
Semiconductor manufacturing
Wave soldering during circuit board assembly
Automotive sensor and manifolds
Insulating circuit boards.
Construction
Single Side:
Physical Properties
Item | NKS-01ESD |
Color | Amber |
Carrier | Polyimide |
Adhesive | Silicone |
Carrier Thickness(mm) | 0.025 |
Total Thickness(mm) | 0.060 |
Tensile Strength(N/25mm) | 115 |
Adhesion(N/25mm) | 5.5 |
Elongation at Break( percent ) | 45 |
Corrosion Resistance | 1.0 |
Heat Resistance( degree ) | 250 |
Electrical Strength(Volts) | 5000 |
Anti-static(Ω) | <>8 |
Storage Condition | 20 degree ,65 percent RH |
RoHS certificate | Complied |
Specification | |
Length(m) | 33 |
Width(mm) | 2500 |
These values are measured values and not guaranteed values.
Shelf Life
ESD polyimide adhesive tape shelf life is 2 years from the date of manufacture when stored at room temperature conditions(72 degree F22 degree and 50 percent RH)in the product's original packaging.
Available Sizes
Width:Maximum width 19.68 inches(500mm).(Can be Customized)
Length:33m(Can be customized).
Custom Sizes: If you need customized sizes or die-cut parts please feel free to contact the NKS sales representative.
